Ontech Alarmbox 9012
Ontech Alarm Box 9012 is a wireless accessory to the main unit Ontech GSM 9025 or Ontech GSM 9035. The unit has an embedded magnet switch, an alarm input and a temperature sensor.
Functions
The unit communicates with the main unit with a short range- radio on the frequency 2.4 GHz. Up to 7 Ontech GSM Alarm boxes can be connected to the main unit.

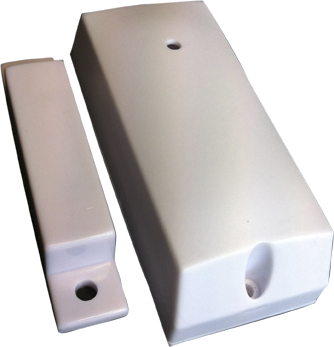

The unit has an embedded magnet switch and a magnet is supplied. Suitable if you wish to set alarms on doors and windows.
The unit has two alarm inputs (one breaking and one closing) and can be connected to different types of alarm sensors such as fire alarms, motion detectors, liquid level switch, etc.
The unit also have a temperature sensor which reports the current temperature at status request.
The unit is powered by a lithium battery that will last up to two years. When the battery is almost empty, a message will be sent to your phone.
Up to 7 units can wirelessly be connected to the main unit in the Ontech GSM system.
The units reach is 30 meters in open field. This is often enough for a normal sized home.
The unit also have a temperature sensor which reports the current temperature at status request.
The unit is powered by a lithium battery that will last up to two years. When the battery is almost empty, a message will be sent to your phone.
Up to 7 units can wirelessly be connected to the main unit in the Ontech GSM system.
The units reach is 30 meters in open field. This is often enough for a normal sized home.
Specifications
- Temperature area: -40 to + 55 degrees Celsius.
- Lithium Battery 3V, lifespan more than two years.
- Power nominally < 0.5W, maximum 4W.
- Two alarm inputs 3- 30 VDC. Can be set to Normally Open or Normally Closed.
- Internal temp sensor +/ -2 degrees at 25 degrees Celsius.
- Short range- radio 2.4 GHz. Out effect 1 mW.
- Embedded magnet switch.
- Total weight 34 gram, cabinet measured 75*32*25 mm.
